| Product name: | High Precision and Stable Servo Hydraulic Testing Machine for Tensile Compression and Bending Tests | Model: | WAW-2000D |
|---|---|---|---|
| Structure: | 6 columns | Control way: | manual & automatic |
| Max.load: | 2000KN | Max. tension test space: | 800(can customize) |
| Max.Compression Test Space: | 700mm (can customize) | Load range: | ±1%-100%FS |
| Electronic extension meter: | 10/50 | Round specimen range: | φ35~φ80mm |
| Flat Specimen Clamping Range: | 20-60mm | Clamping method: | hydraulic clamping |

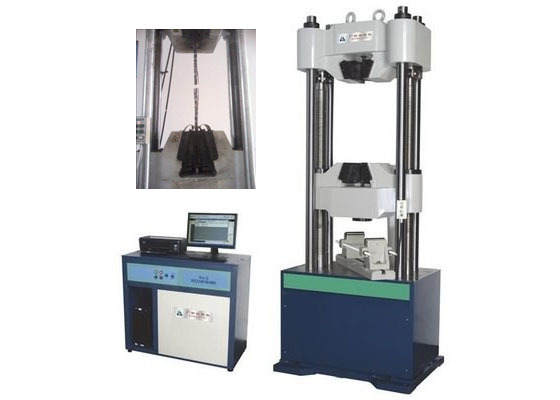

High Precision and Stable Servo Hydraulic Testing Machine for Tensile Compression and Bending Tests
1. Product introduction:
Computer-controlled hydraulic servo loading mode, adopting Japan's SHIMADZU technology, with worm wheel and worm shaft driving the crosshead up and down; featuring double working spaces: tensile tests are conducted on the upper part of the crosshead, while compression and bending tests are performed between the workbench and the crosshead.
The crosshead (middle beam) is moved by a motor, along with a worm wheel and worm shaft structure. This structure enhances machine stability and ensures accurate test data. With minimal friction, it can guarantee a longer service life for the testing machine.
2. Price advantage:
We strengthen our independent R&D efforts, establish a processing center, and independently manufacture core components—this allows us to cut down on link costs while maintaining consistent quality. Our high-quality products can save you far more than those low-priced yet poor-quality alternatives. Lowering the machine's failure rate reduces customers' maintenance costs and also boosts machine efficiency. Such a blend of competitive pricing and high quality brings real benefits to customers.
3. Meet Standards:
ISO 6892, ISO 6934 BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.
4. Main technical parameters:
| Model | WAW-2000D |
| Structure | 6 Column (Four Columns Two Ball Screws) |
| Control Way |
Constant Stress, Constant Deformation, Constant Displacement Three Closed Loop Control and Program Control |
| Max.Load | 2000 KN (200 TONS) |
| Load Accuracy | ≤±1% (Optional: ≤± 0.5%) |
| Load Range |
2%~100%FS (40KN~2000KN) (Optional: 0.4%-100%FS (8KN~2000KN)) |
| Load Resolution | 1/500000 |
| Deformation Measurement Range | 1%~100%FS |
| Deformation Accuracy | ≤±1% (Optional: ≤± 0.5%) |
| Displacement Resolution | 0.01mm |
| Displacement Error | ≤±0.5% |
| Max. Piston Stroke | 200mm |
| Max. Piston Moving Speed | 0-50mm/min Stepless Speed Adjusting |
| Crossbeams Lifting Speed | 250mm/min |
| Max. Tension Test Space | 800mm (Can Be Customized) |
| Max. Compression Test Space | 700mm (Can Be Customized) |
| Center Spacing Between Columns | 620mm |
| Column Effective Spacing | 520mm |
| Clamping Method | Hydraulic Automatic Clamp |
| Round Specimen Clamping Range |
φ35~φ80mm |
| Flat Specimen Clamping Range | 20-60mm |
| Flat Specimen Clamping Width | 90mm |
| Flat Specimen Clamping Length | 100mm |
| Compression Plate Size | 200*200mm |
| Bending Roller Distance | 450mm |
| Width Of Bending Rollers | 140mm |
5.Principles of Control Systems:
The hydraulic control section is composed of an oil tank, oil pump, high-pressure oil filter, motor, control valve, etc., and serves to provide stable and continuous high-pressure oil supply to the main body. After power-on, the motor is started and drives the oil pump to work. The oil pump sucks oil and then delivers it to the main cylinder of the universal machine through the oil supply valve and oil pipe. The piston in the cylinder rises and drives the movement of various components to complete the compression or bending test.
