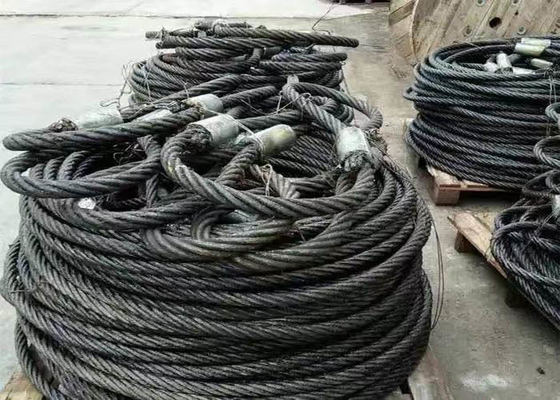

| Product name: | State-of-the-Art Electronic Universal Testing Machine for Comprehensive Material Analysis Applicable Steel Wire Rope | Max. load: | 300KN |
|---|---|---|---|
| Control System: | Computer Control | Accuracy: | ±1% |
| Test Speed Range: | 0.001-500mm/min | Tensile space: | 600mm |
| Test width: | 520mm | Data Output: | USB, RS232 |
| ハイライト: | 300KN electronic testing machine,computer-controlled universal testing machine,high-capacity electronic testing equipment |
||
| Attribute | Value |
|---|---|
| Max. load | 300KN |
| Control System | Computer Control |
| Accuracy | ±1% |
| Test Speed Range | 0.001-500mm/min |
| Tensile space | 600mm |
| Test width | 520mm |
| Data Output | USB, RS232 |

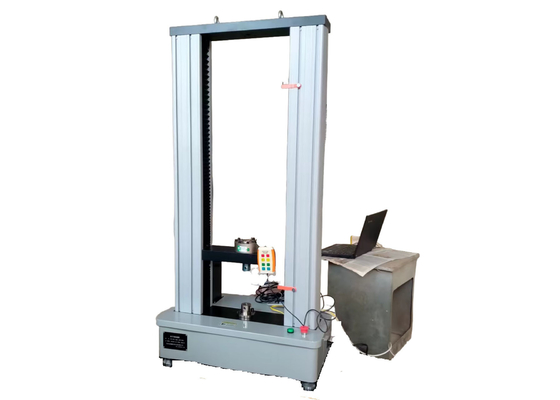

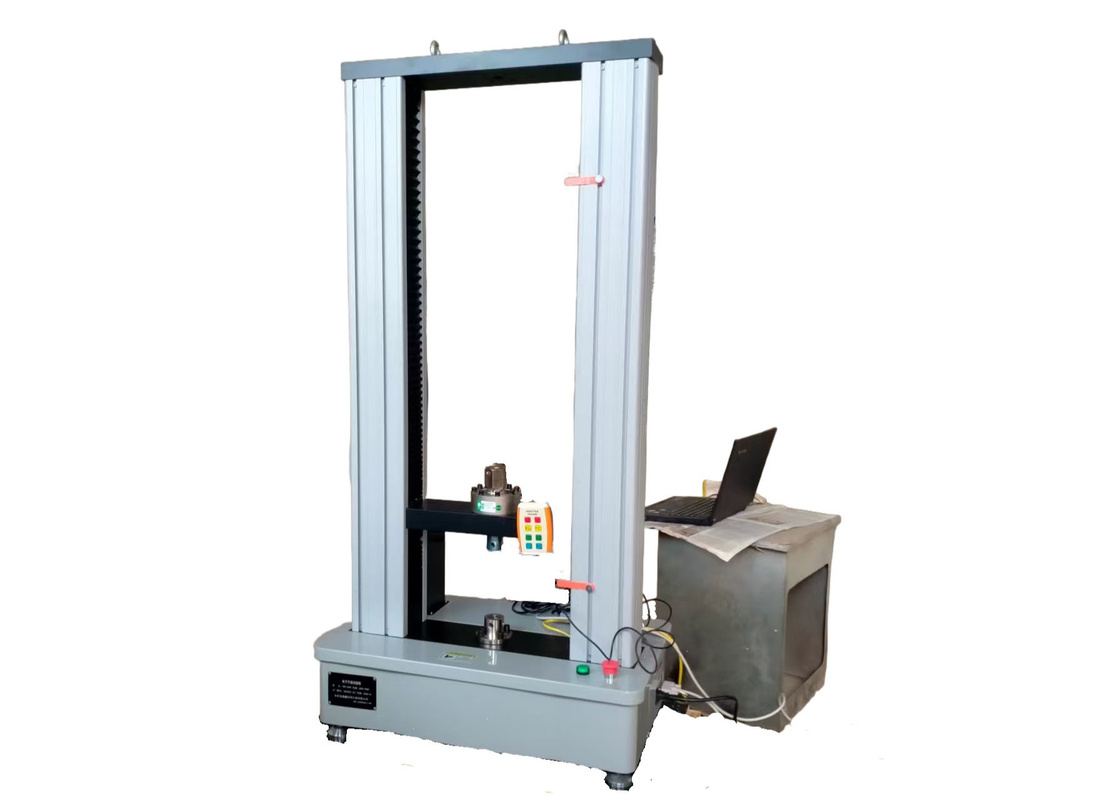

The Electronic Universal Testing Machine is engineered for conducting tensile and stretching tests with efficiency and precision. It features a test speed range of 0.001-500mm/min, a tensile space of 600mm, a stroke of 1000mm, and a power input of 220V/50Hz.
This machine is ideal for testing tensile strength, compression capacity, and pulling strength of various materials including metals, plastics, rubber, and textiles. It's widely used in laboratories, R&D departments, and quality assurance facilities across multiple industries.
| Parameter | Details |
|---|---|
| Power Supply | 220V/50Hz |
| Test Width | 520mm |
| Dimension | 1000mm × 800mm × 2000mm |
| Test Force Range | 3-300kN |
| Test Types | Tensile, Compression, Bending, Shear, Peel, Adhesion |
| Stroke | 1000mm |
| Test Software | Windows |
Customization services are available to meet specific application requirements and testing scenarios.
The machine is securely packed with protective foam cushioning and shipped via reliable logistics partners. All components undergo thorough inspection before shipment, with tracking information provided for real-time monitoring.
A laboratory-grade instrument designed to measure various mechanical properties of materials including tensile strength, compression strength, and flexural strength.
Plastics, rubber, metals, textiles, paper, and various composite materials.
It uses a motor-driven system to secure and test specimens, with mechanical responses measured and displayed in real-time on a digital interface.
