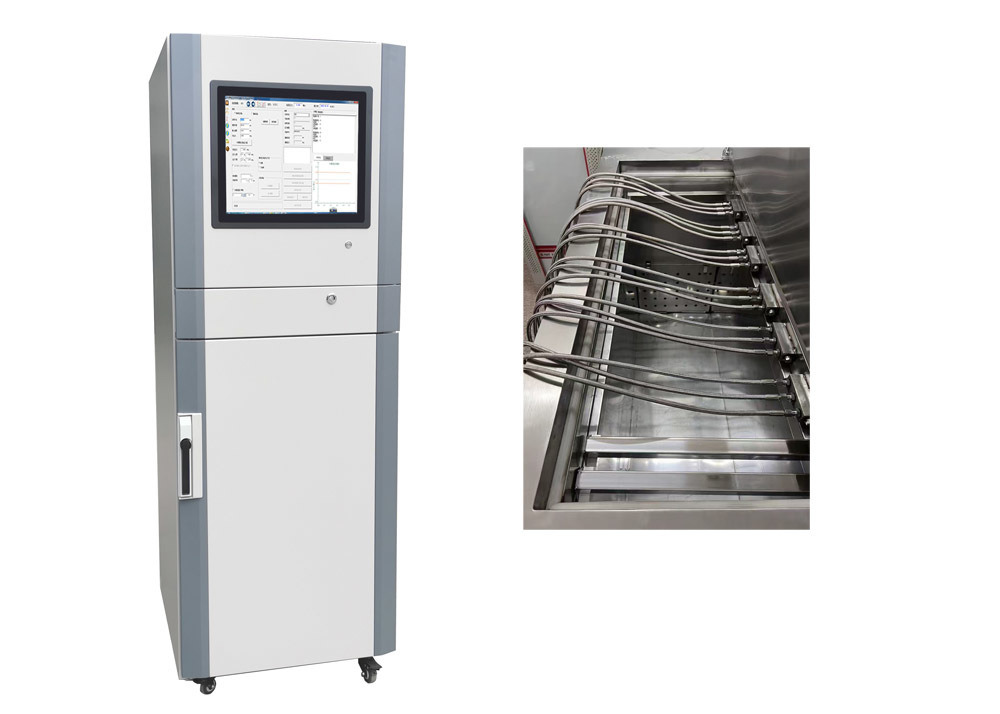

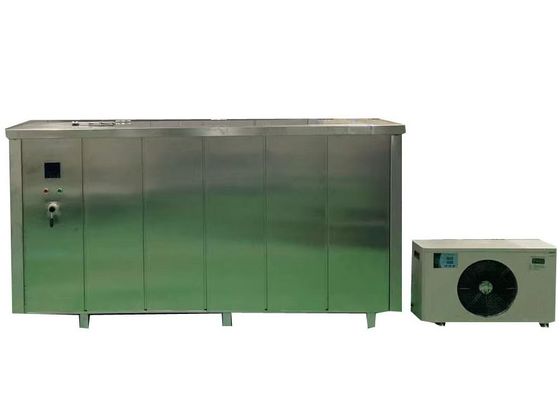

Precision and Durability Hydrostatic Pressure Testing Machine for Industrial Applications

• The machine is controlled by an Industrial Personal Computer (IPC), ensuring stable and precise operational control.
• Each test station is controlled independently, with the maximum number of configurable test stations reaching 50.
• It is capable of conducting multiple types of tests, including hydrostatic tests, bursting tests, and 8760-hour long-term performance tests.
• The test pressure range of the machine is 3 to 10 MPa, covering the pressure requirements of most plastic pipe testing scenarios.
• The system can identify eight test states: pressure boosting, pressure relief, pressure compensation, overpressure, operation, test completion, leakage, and bursting.

Upon inputting parameters such as pipe ring stress, wall thickness, and average outer diameter into the PC, the system automatically computes the test pressure and transmits the data to the lower computer (MCU embedded system) via the RS232 serial port. The machine then automatically maintains constant pressure on the pipeline: the high-pressure pump generates a high-pressure liquid pressure source, which, after processing by the pressure control system, is delivered through a high-pressure hose to the sample housed in the medium incubator. This enables the pipe to undergo either a long-term hydrostatic test or a burst test.

• On-site machine installation and commissioning
• Professional troubleshooting and targeted technical consultation
• Repair and preventive maintenance services
• Supply of genuine spare parts and consumables
• Timely software updates and upgrades

We are dedicated to delivering premium customer service and remain readily accessible to address any inquiries or concerns regarding the equipment's operation, maintenance, or performance.
