商品の詳細:
お支払配送条件:
|
| 製品名: | 材料評価用の自動サンプルフレームを備えた変形温度試験を提供する HDT VICAT 試験機 | テストステーション: | 3 |
|---|---|---|---|
| 加熱速度: | 120±10°C/h 、 50±5°C/h | 最高温度の間違い: | ±0.5℃ |
| 変形の測定の範囲: | -1.00×10.00mm | サンプルサポートのスパン: | 64mm、100mm |
| 最大変形測定誤差: | 0.001mm | 現在のソース: | 4KW 220VAC 50HZ |
| ハイライト: | HDT VICAT testing machine with automatic sample frame,material deformation temperature testing machine,HDT VICAT tester for material assessment |
||

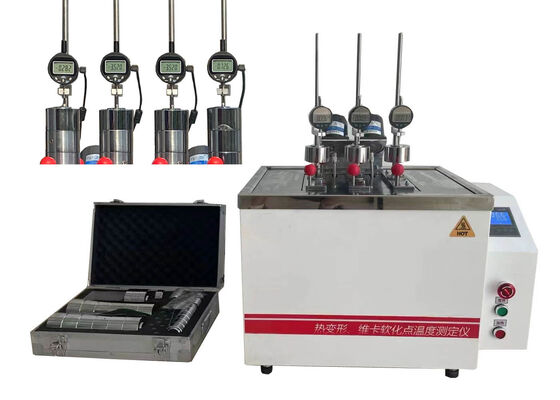

This precision testing instrument is engineered to meet the evolving demands of the plastics industry, providing advanced material research and testing capabilities. Manufactured in strict compliance with international and national standards, it is widely used across plastic chemical enterprises and research institutions for comprehensive material performance evaluation.

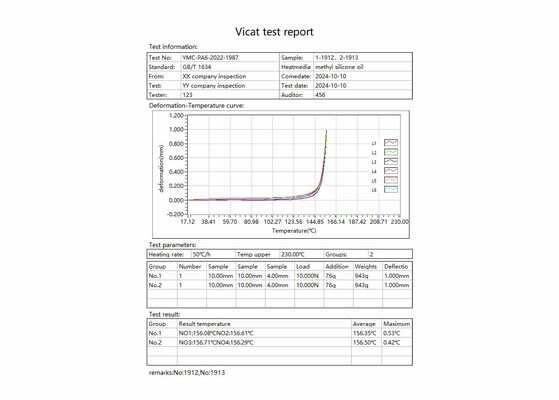

The machine features PC-based centralized control with digital micrometers for high-precision deformation measurement. It supports real-time test curve plotting and enables secondary data processing directly on the host computer. All test data can be exported to OFFICE software for further editing and formatting. The integrated automatic sample frame lifting mechanism ensures streamlined operation and enhanced workflow efficiency.
Utilizing a constant-speed heating algorithm, the system integrates real-time and historical temperature data to dynamically adjust heating control parameters, maintaining exceptional heating rate linearity. Built-in temperature protection automatically stops heating when safety thresholds are reached.
The instrument offers three configurable test termination modes: reaching preset displacement threshold, hitting upper temperature limit, or manual termination. Additional features include constant-temperature preheating and expansion coefficient calibration to optimize test efficiency and enhance result accuracy.
The testing equipment fully complies with the following international and national standards for thermal performance testing of plastics, thermoplastic pipes, and fittings:
| Temperature control range | Room temperature ～300℃ |
| Heating rate | 120±10℃/h , 50±5℃/h |
| Maximum temperature error | ±0.5℃ |
| Temperature measurement point | 1 |
| Test stations | 3 stations |
| Test frame lifting mode | Automatic rising-lowering |
| Formal measurement measuring tool | Digital display dial gauge |
| Deformation measurement range | -1.00～10.00mm |
| Span of sample support | 64mm and 100mm |
| Maximum deformation measurement error | 0.001mm |
| Thermal expansion coefficient of specimen holder | <0.005mm/100℃ |
| Heating medium | Methylsilicone oil |
| Cooling method | ＞150℃ Natural cooling, ≤150℃ water cooling or natural cooling |
| Temperature protection | Automatic heating stop when test temperature reaches upper limit |
| Equipment size | 870mm×570mm×1420mm |
| Current source | 4.0KW, 220VAC, 50HZ |
Our comprehensive service portfolio ensures optimal operational performance and maximum equipment uptime through professional technical support and after-sales services.
Certified field technicians conduct on-site installation, precision calibration, and full system commissioning. Comprehensive operator training covers machine operations, test parameter configuration, maintenance protocols, and data management.
Customized maintenance programs include routine inspection of critical components, calibration verification, and replacement of wear parts to sustain long-term operational stability and testing accuracy.
Dedicated technical support provides timely assistance for equipment malfunctions, operational anomalies, or data inaccuracies through remote consultation or on-site service dispatch.
The HDT VICAT Testing Machine is packaged in export-grade reinforced wooden crates with multi-layered protection:
Equipment is consigned to reputable international carriers (UPS, FedEx, DHL) with full tracking and real-time logistics updates provided.
