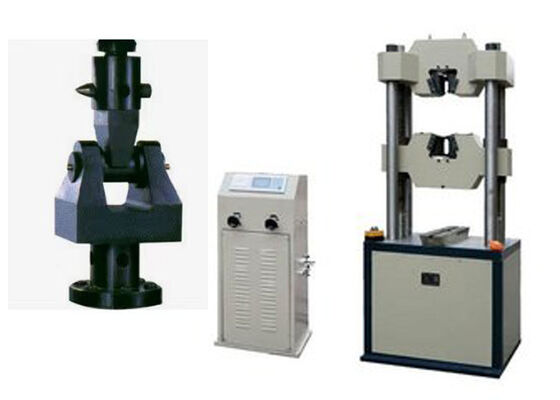

Servo Hydraulic Testing Machine Designed for Automatic Testing Report Printing and Data Storage in Metal Material Mechanical Testing

大画像 : Servo Hydraulic Testing Machine Designed for Automatic Testing Report Printing and Data Storage in Metal Material Mechanical Testing

商品の詳細:

起源の場所:	中国、北京
ブランド名:	JINHAIHU
証明:	ISO9001. CE
モデル番号:	WAW-2000D

お支払配送条件:

最小注文数量:	1セット
パッケージの詳細:	標準的な輸出用木製ケース
受渡し時間:	7〜15営業日
支払条件:	T/T、L/C、D/A、D/P、Western Union、MoneyGram
供給の能力:	毎月20セット

詳細製品概要

製品名:	金属材料機械試験における自動試験レポート印刷およびデータ保存用に設計されたサーボ油圧試験機	モデル:	WAW-2000D
構造:	6列	制御方法:	手動および電気流体式のservo
マックス.ロード:	2000KN	最大引張試験空間:	700（カスタマイズ可能）
最大圧縮試験スペース:	600mm (カスタマイズ可能)	負荷範囲:	0.5%~100%FS
ハイライト:	Servo Hydraulic Testing Machine for metal testing , Automatic testing report printing machine , Hydraulic testing machine with data storage

Servo Hydraulic Testing Machine for Metal Material Testing

This servo hydraulic testing machine is specifically engineered for tensile testing of metallic materials, dedicated to accurately determining key mechanical property parameters including tensile strength, yield strength, specified plastic extension strength, percentage elongation after fracture, and elasticity modulus.

Applications

Designed for comprehensive evaluation of material mechanical behaviors under tensile loads, providing reliable data support for material quality validation, performance verification, and compliance assessment with industrial standards.

Key Features

Test Rate Control: Automatic closed-loop control for precise loading/unloading speeds
Gripping Mechanism: Hydraulic wedge-type clamping system with uniform, high-stability clamping force

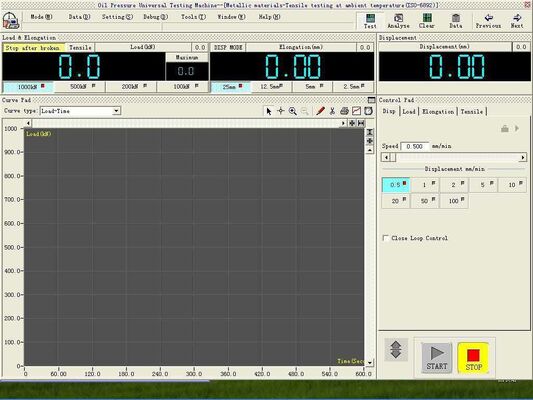

Data Management: Automated data archiving with comprehensive test report generation

Price Advantage

Our vertical integration strategy enables streamlined supply chain management and reduced costs while maintaining uncompromised product quality. We deliver superior long-term value through reduced maintenance expenses and enhanced testing operational efficiency.

Compliance Standards

ISO 6892, ISO 6934, BS4449, ASTM C39, ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards.

Safety Protection Systems

Overload Protection: Automatically triggers when test force exceeds 2%-5% of maximum range

Stroke Limit Protection: Activates when hydraulic piston reaches upper mechanical limit

Technical Specifications

Parameter	Specification
Model	WAW-2000D
Max. Test Force	2000 kN
Structure	Four columns two ball screws, oil cylinder down-setting type
Load Range	1%-100%
Middle Beam Elevating Speed	170 mm/min
Max. Tensile Space	700 mm
Max. Compression Space	600 mm
Piston Stroke	250 mm
Stranded Wire Clamping Range	Φ35-80 mm
Power Total	3.2 kW
Compression Plate Size	Φ160 mm
Bending Support Roller Distance	350 mm

Packing and Shipping

Frequently Asked Questions

Q1: Is your company a trading firm or a manufacturing factory?

We operate as an integrated manufacturing and trading entity with 18 years of experience in testing instruments and 14 years of international export experience. Our vertical integration ensures end-to-end quality control.

Q2: How can I select the most suitable testing equipment for my needs?

Our technical specialists provide tailored recommendations based on your specific test type, technical requirements, and application scenarios.

Q3: What are your delivery terms and lead times?

Standard instruments are typically available for immediate shipment. Custom products require 15-20 working days from deposit confirmation. Expedited production is available for urgent needs.

Q4: Do you offer customization services for testing equipment?

Yes, we provide comprehensive customization services for unique technical specifications, workflow requirements, or industry compliance needs.
